- Place of Origin: Shenzhen
- Brand Name: EAZZYDV
- Model Number: BC-689

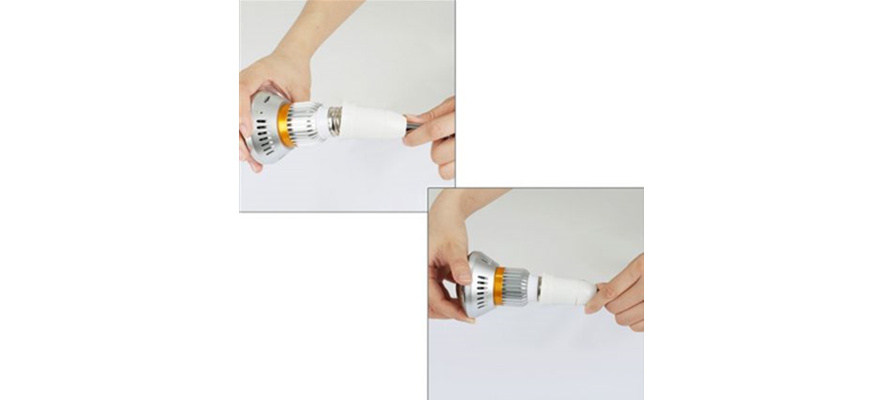

- Easy Installation, Simple Operation
Insert a Micro-SD card into camera, screw in like a bulb, turn on power. That is it.
Worldwide usage
Accept AC 110V-250V for worldwide usage, providing different bulb adapters for different countries.Used as a real lamp, triggered by Motion Detection
2pcs of 3W white light for lighting, On/Off by motion detectionLocal Storage, Small video file size
Support Micro-SD card 2GB-32GB, using 3gp video format, 4GB Card stores 24hrs video files (CIF format)Powerful functions
Built-in a powerful security management system, 7 major functions are changeable to meet different applicationsEasy change setting
All setting changes and updates are done on Micro-SD card, Quick, Simple and Easy
7 Major functions :
Function Name | Description |
| Recording Mode : Real time / Motion Detection only | Real time Recording : Video files will be recorded continuously in 30 min per file Motion Detection only : Records moving objects only. |
| Resolution : VGA/CIF | Two video resolutions for selection, VGA 640x480 / CIF 352x288 |
| Video File Storage Mode : Circular / Non-Circular | Circular storage means if Micro-SD card is full, it will overwrite earlier files and keep storing. Non-circular storage means when Micro-SD card is full then stop recording |
| Recording Indication Light On/Off | Recording indication light On, blue indication light will be flashing when recording. Recording indication light Off means no light when recording. |
| Time Stamp on Video | Stamping the date time on video or not |
| Recording Audio | Recording video with sound or not |
| Date time | Use computer system time or customize a time |
Specifications :

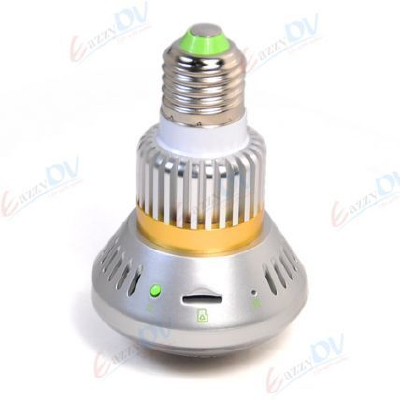

| Model No. | BC-689 - Four LED Lights Bulb DVR Camera Backup 1.5hr |
| System | ARM9 32-bit Microprocessor core |
| Image Sensor | 1/4" CMOS sensor |
| Len Resolution | 300,000 pixel |
| Len | 3.6mm(default)/2.8mm/6mm (optional) |
| Viewing Angle | 2.8mm - around 110 degree 3.6mm - around 90 degree 6mm - around 60 degree |
| Video Format | 3GP |
| Video Resolution | 640x480(VGA) / 352x288(CIF) |
| Audio Format | ADPCM format |
| Microphone | Built-in |
| Memory Card Device | Micro-SD Card, 2GB-32GB |
| Video File Size | A 4GB card can store 24hrs video files (CIF format) |
IR LED Real Light | 4pcs of LED light
|
| Night vision Distance | 15 - 20 Meters (6mm Len) 10 - 15 Meters (3.6mm Len) 5 - 10 Meters (2.8mm Len) |
| Motion Detection Distance | 5 - 8 Meters |
| Min. illumination | 0 Lux (IR on), 0.5 Lux (IR Off) |
| Camera Adapter | E27 |
| Input Voltage | AC 110V – 250V for worldwide |
| Power Consumption | <5W |
| Working Temperature | -20 C ~ 70 C |
| Dimension | 110mm Height x 72mm Diameter |
| Weight | 120g |
- Place of Origin: Shenzhen
- Brand Name: EAZZYDV
- Model Number: BC-689
